Europe Type
  • Product Introduction
  • Specification

Car Frame Machine Model SLD-F3000S

Application

It is simple,convenient,economical and save space.best selling models and suitable to repair samll accidents.Four legs,four clamps,it can fix the whole car,better fastness,better tensile strength.

Length

3400mm

Height

120-1200mm

Width

800mm

Radius of pulling

360°

Air supply required

0.8Mpa

Total weight

1600KGS

Tower Height

1800mm

Hydraulic pressure

70Mpa

Lifting capacity

2500KGS
  • Features

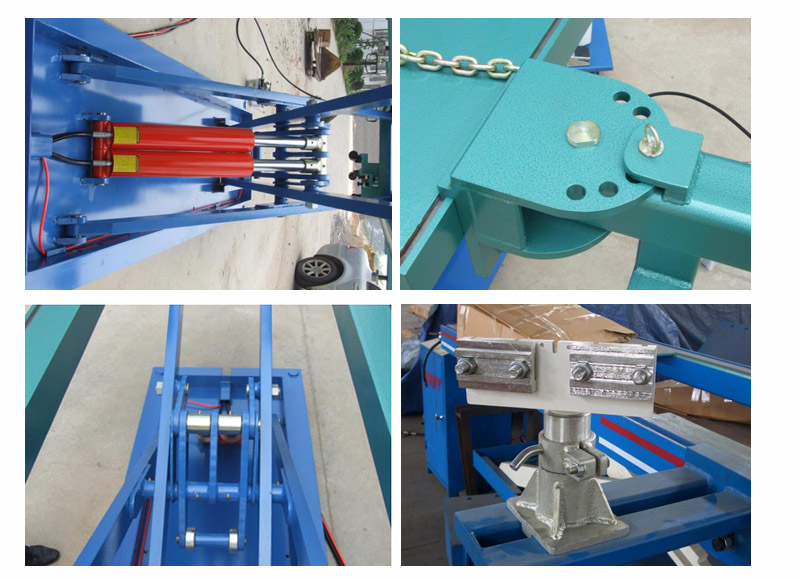

1.Portable!Adjustable height.A scissor lift plus a portable frame rack,all in one package.
2.Small bench let the worker have more space to check and repair the vehicle.
3.Pulling tower can adjust the height,also with upper arm.
4.Five-ton towers can be fixed to the place around platform.
5.With excellent hydraulic pump system---for long time use.
6.Universal clamping system anchors any vehicle rock-solid. Also with four pads.
7.With high-strength clamp chains and pullingaccessories.
