Diesel heating

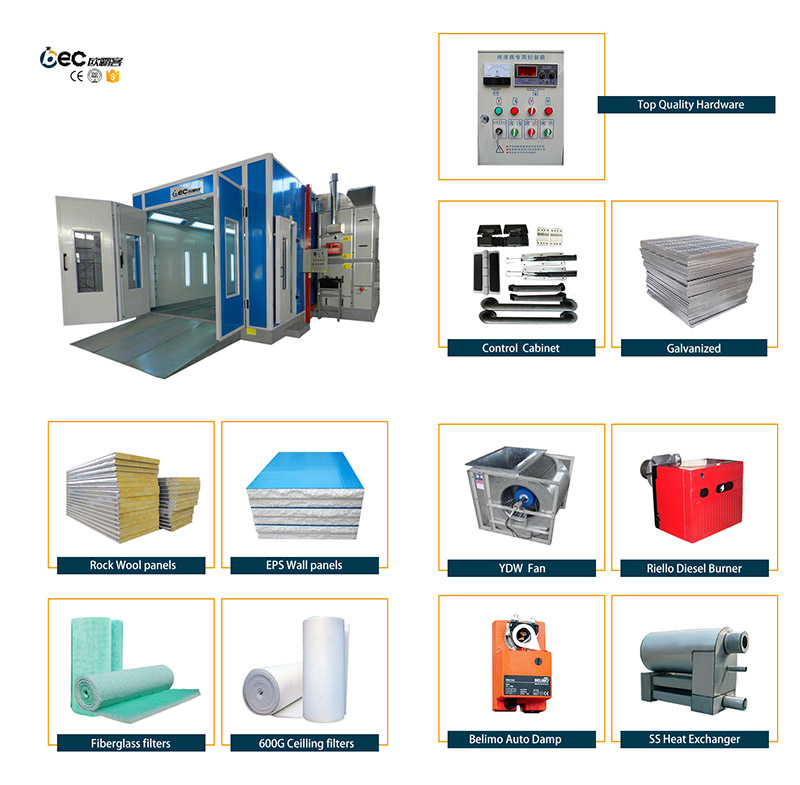

  • Product Introduction
  • Specification

Outside size 7100*5430*3400mm(L*M*H)
Inside size 6900*4000*2650(L*M*H)
Entrance door 3folds,3000*2600mm(W*H)aliminum alloy covered frame
Emergency door 650*1800mm(W*H),equipped with handle lock
Cabinet Wall panel EPS with double-ply plate,tongue and groove construction,thickness:50mm
Basement Galvanized steel assemble,high is 300mm,full grille floor,3pieces of ramps,520*1750mm(W*L)
Ventilation system  Inlet fan 2*4kw double-intake air,quadrate steel frame,coated steel
Outlet fan Optional
Cabinet setting type Side upper intake qir,quadrate steel frame,foated steel
Heating system Burner 1 set BT4KW oil burner,heating producticity 180000Kcal/h
Heat Exchanger Stainless steel heat exchanger
Working temperature 80℃
Lighting system Ceiling lights 32pcs*16w Philip tubes with electronic ballast
Side lights Optional
Filtering system Intake air:pre-filter,high efficency filter(ceiling filter)
Water-soluble Disposal Ark 40 pieces of air nozzles,10 pieces of nozzles on each corner,4*0.35KW air fans
Control system Fuction Lighting,temerature time setting,painting,constant temperature painting,baking,emergency stop,failure indication tine accumulate,etc
Total power 9KW
