Diesel heating

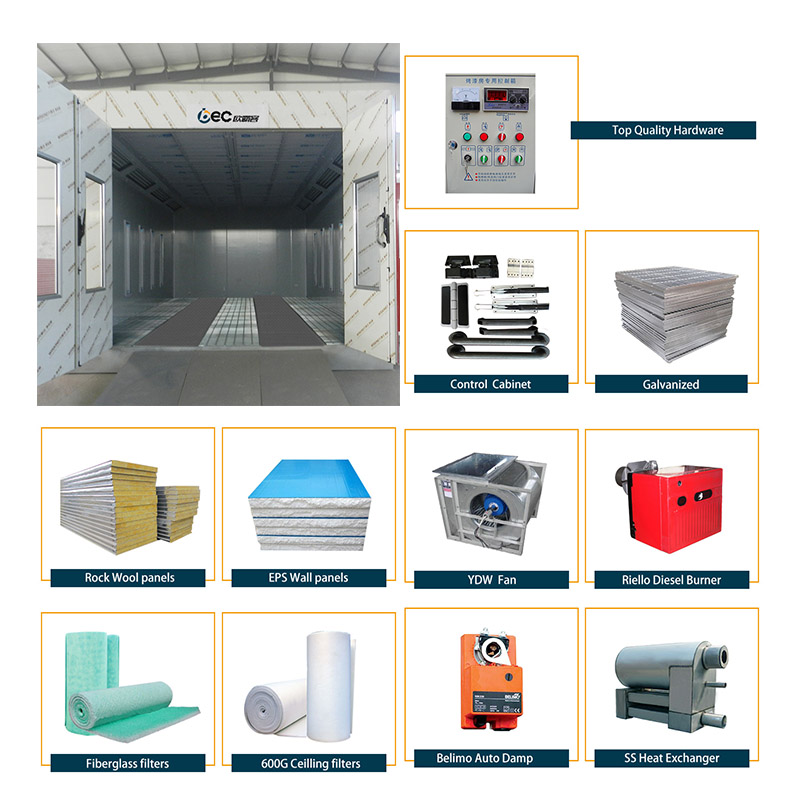

  • Product Introduction
  • Specification

Outside size 7000*5350*3400mm(L*M*H)
Inside size 6900*3900*2650(L*M*H)
Entrance door 3folds,3000*2600mm(W*H)aliminum alloy covered frame
Emergency door 800*2000mm(W*H),equipped with handle lock
Cabinet Wall panel Sandwich style EPS 50mm,0.426mm thick steel,antil-flame and heat-insulation
High quality galvanized steel roof panel
Basement Galvanized steel lassemble,300mm high,quadrate steel support,2 rows of grils,3 rows of indented plates
2ramps,external setting,900*2000mm(W*L)/pc
Ventilation system  Inlet fan 2*4kw double-intake centrfugal fans,model:YDW4.5AL1,air capacity:12000m³/h for each set
Outlet fan 1*7.5kw double-intake centrfugal fans,model:YDW-5.6M,air capacity:20000m³/h for each set
Cabinet setting type Intake air from side upper,adopt powder quadrate steel frame,strong and beautiful
Cabinet for the fan*1unit,air duct*2m long*1unit
Elbow:90°*1 unit
Airflow speed 0.4m/s,ventilation rate 315time/h
Heating system Burner ltaly RIELLO G20 oil burner,heating capacity:200000kcal/h,with BELIMO 10N electric damper
Heat exchanger 1.5mm thickness SUS304 stainless steel
Cabinet Rock-wool insulation*1 unit
Lighting system Ceiling lights 32pcs*16w Philip tubes with electronic ballast
Slide lights 16pcs*16w Philip tubes with electronic ballast
Filtering system Primary filter Grade G2 plate type,filtering rate>83%
Ceiling filter EU5 grade high efficient filter,filtering rate>98%
Floor filter Multi-layer fiberglass filter,filering rate>70%
Control system Active carbon Grade G4,purifying rate of bug dust≥85%
Control panel Micro-computer control system
Fuction Lighting,temerature time setting,painting,constant temperature painting,baking,emergency stop,failure indication tine accumulate,etc
Total power 17.5KW
Voltage/Frequency 380V,50HZ,3phase
