Diesel heating
  • Product Introduction
  • Specification

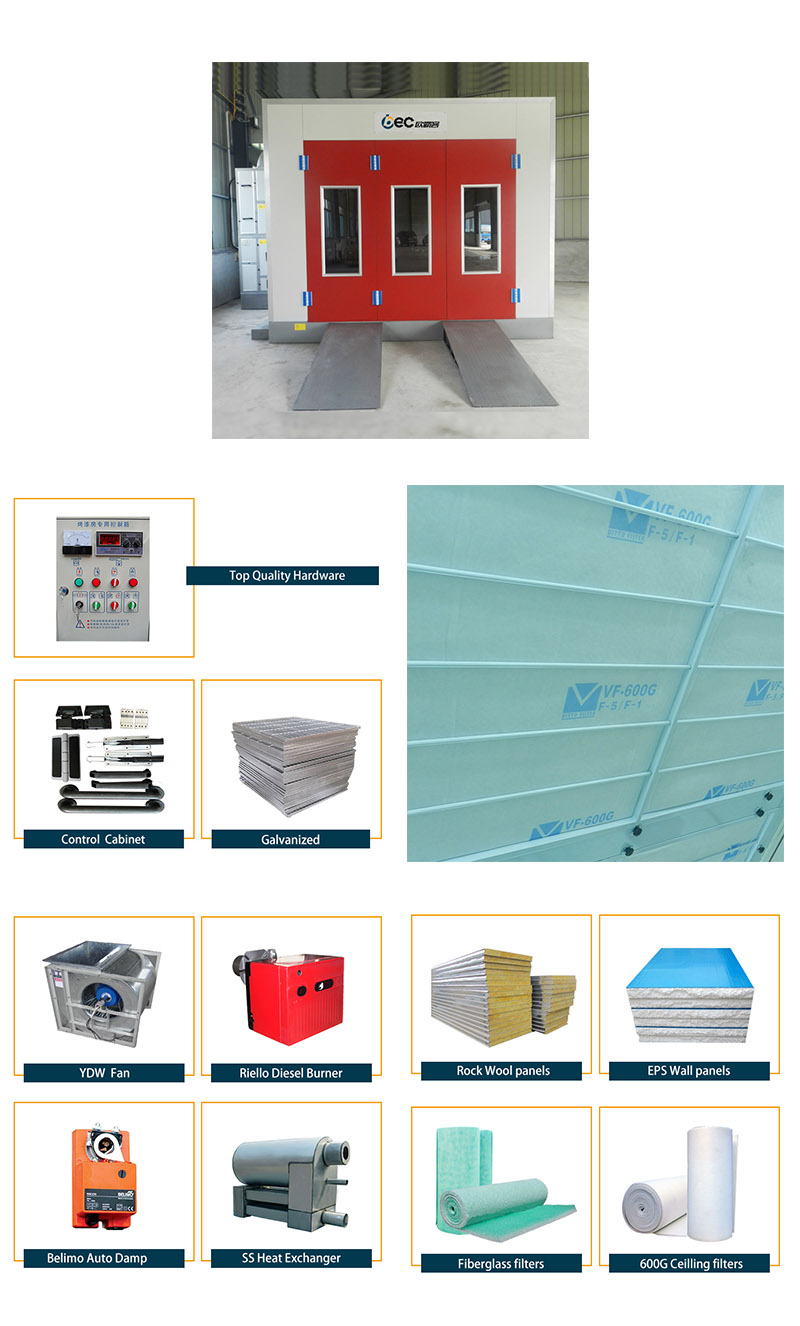

Outside size 7000*5350*3400mm(L*M*H)
Inside size 6900*3900*2650mm(L*M*H)
Entrance door 3folds,3000*2600mm(W*H),bending steel without covered frame
Emergency door 650*1800mm(W*H),equipped with handle lock
Cabinet system Wall panel Sandwich style EPS 50mm,0.376mm thick steel, anti-flame and hear-insulation
High quality galvanized steel roof ranel
Basement Galvanized steel assemble,3 rows of indented plates
Ventilation system  Inlet fan 2*4kw double-intake centrifugal fans,model;YDW4.5M1,air capacity:12500m3/h for each set
Outlet fan Optional
Cabinet setting type Intake air from side spper,adopt powder quadrate steel frame,strong and beautiful
Cabinet for the fan*1unit,air duct*2m long*1unit
Elbow:90°*1 unit
Airflow speed 0.35m/s,ventilation rate:280time/h
Heating system Burner Italy RIELLO G20 oil burner,heating capacity:200000Kcal/h,with BELIMO 10N electric damper
Heat exchanger 1.2mm thickness SUS304 stainless steel
Cabinet Rock-wool insulation*1 unit
Lighting system Ceiling lights 24pcs*16w philip tubes with electronic ballast
Slide lights Optional
Filtering system Primary filter Grade G2 plate type,filtering rate>83%
Ceiling filter EU5 grade high efficient filter,filtering rate>98%
Control system Floor filter Muliti-layer fibergkass filtering rate>70%
Control panel Intelligent control system
