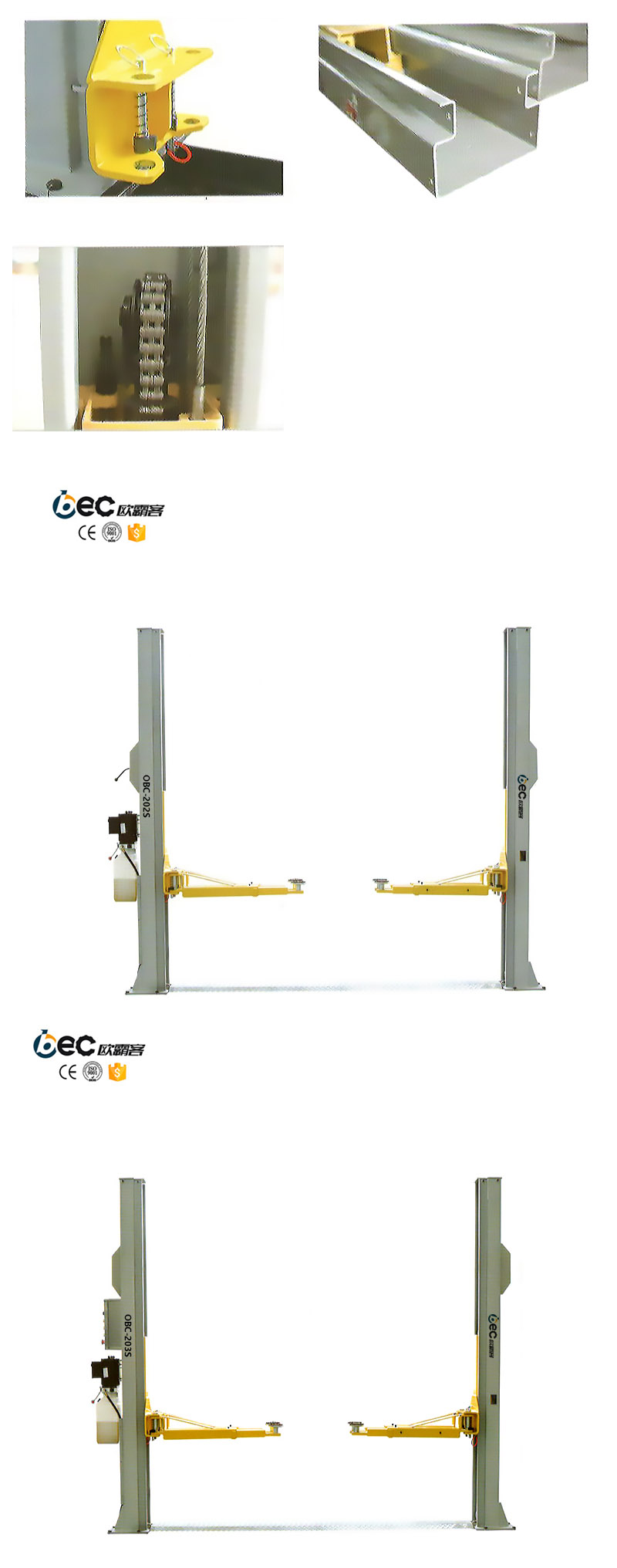

Clear floor car lifter
  • Product Introduction
  • Specification
OBC-200S
Model No. OBC-200S OBC-201S
Lifting capacity 3.5T/4T 4.5T
Max lifting height 1820MM 1820MM
Minimum height 95MM 95MM
Lifting time ≤50S ≤50S
Overall width 3410MM 3410MM
Overall height 2860MM 2860MM
Motor voltage 380V/220V 380V/220V
Motor power 2.2KW 2.2KW
Package size 2960*465*735MM 2960*465*735MM
Lock release Bilateral manual unlocking Or Single side manual unlocking OR Electric unlock device (Optional)
  • Features

1. Column eight bends
2. The slide holder is bent once
3. Double side manual unlocking.
4. Wire rope balance system
5. The cylinder 100% passed the pressure test
6. High quality power unit, safe and reliable operation
7. After 115% dynamic load test, 150% static load test



  • Specification
OBC-203S
Model No. OBC-203S
Lifting capacity 3.5T/4T
Max lifting height 1850MM
Minimum height 100MM
Lifting time ≤50S
Overall width 3410MM
Overall height 2860MM
Motor voltage 380V/220V
Motor power 2.2KW
Package size 2960*465*735MM
Lock release Bilateral manual unlocking Or Single side manual unlocking OR Electric unlock device (Optional)

  • Features

1.Standing eight bends
2.Sliding table fixing seat is bent once
3.Electronic control unlock
4.Wire rope balance system
5.The cylinder 100% passed the pressure test
6.High quality power unit, safe and reliable operation
7. After 115% dynamic load test, 150% static load test



  • Specification
OBC-204S
Model No. OBC-204S
Lifting capacity 3.5T/4T
Max lifting height 1850MM
Minimum height 100MM
Lifting time ≤50S
Overall width 3410MM
Overall height 2860MM
Motor voltage 380V/220V
Motor power 2.2KW
Package size 2960*465*735MM
Lock release Bilateral manual unlocking Or Single side manual unlocking OR Electric unlock device (Optional)
  • Features

1.Standing eight bends
2.Sliding table fixing seat is bent once
3.Electronic control unlock
4.Wire rope balance system
5.The cylinder 100% passed the pressure test
6.High quality power unit, safe and reliable operation
7. After 115% dynamic load test, 150% static load test
